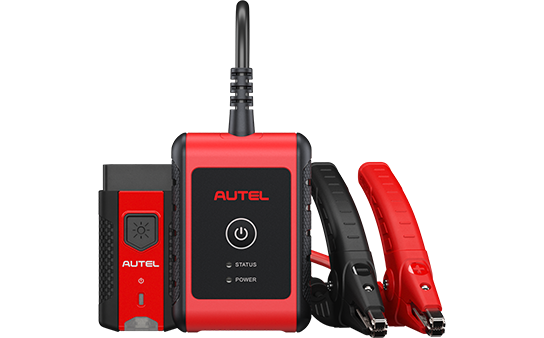

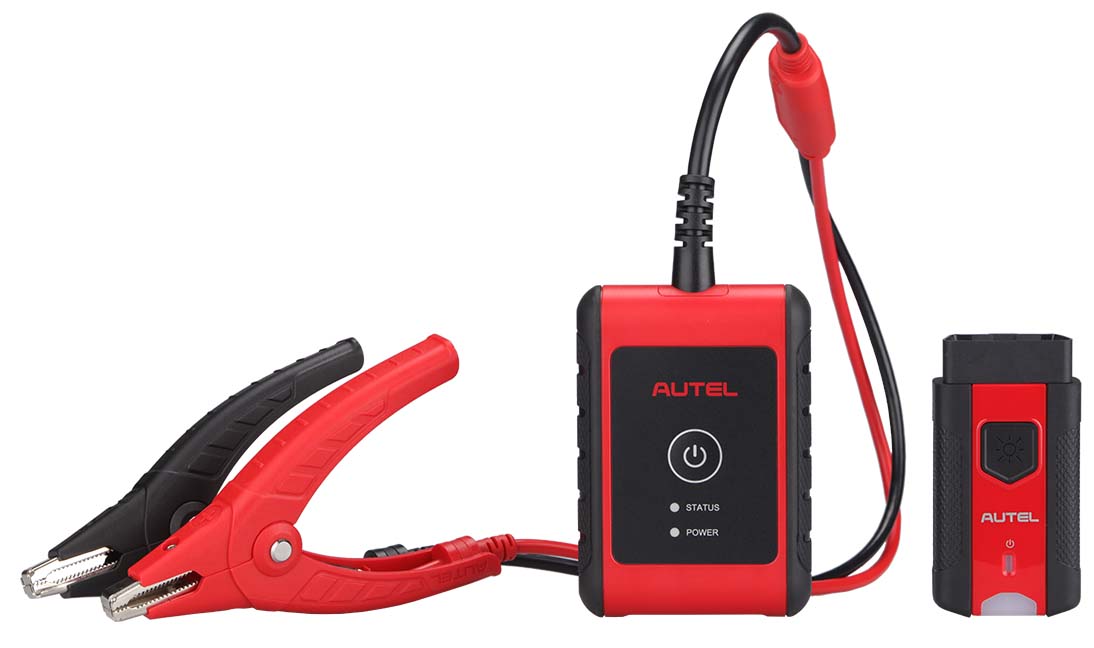

MaxiBAS BT508

Product Details:

Item Description
Connectivity USB 2.0, Type C, Bluetooth   V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage 5V DC
Working Current < 150 mA at 12 V DC
CCA Range 100 to 2000 A
Voltage Range 1.5 to 16V
Working Temperature -10° to 50° C (14° to 122° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Dimension (L x W x H) 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight 320 g (0.7 lb.)

Description

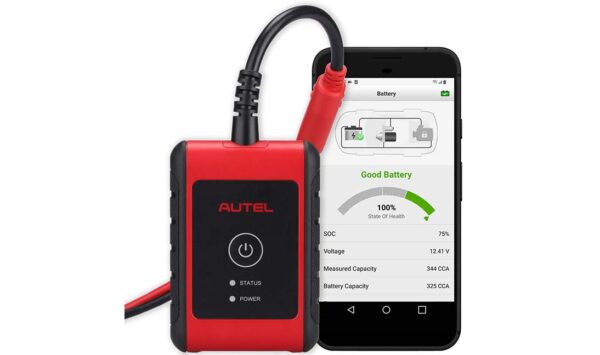

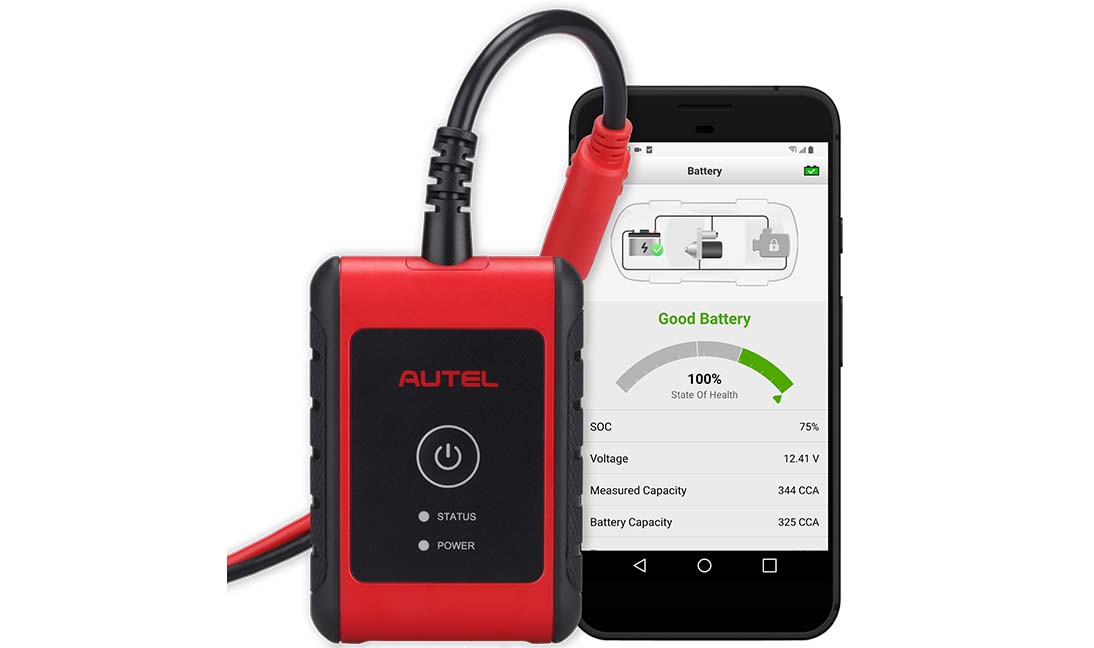

The BT508 is powerful yet, lightweight battery and electrical system tester that uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT508 to perform testing and display test results. The BT508 package includes a wireless Bluetooth vehicle communication interface enabling battery and electrical component registration.

  • Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
  • Test 12-volt batteries: 100 – 2000 CCA
  • Test 12-volt cranking/charging systems
  • Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
  • Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
  • One-touch battery registration
  • Illustration instruction guides for battery positioning and testing
  • Read and erase codes of all available systems
