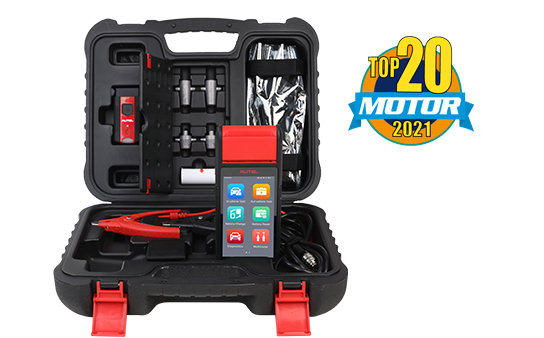

MaxiBAS BT608

Product Details:



Item Description
Operating System Android 9.0
Screen Display 5.5” LCD touch   screen with 720*1280 resolution
Storage 32 GB
Connectivity Wi-Fi (802.11   a/b/g/n/ac), USB 2.0 , Type C, BT5.0+EDR
Camera 8 Megapixel
Input Voltage 5V DC
Working Current < 450 mA at   7.7 V DC
Internal Battery 7.7 V, 3000 mAh
CCA Range 100 to 3000 A
Voltage Range 1.5 to 16V
Working Temperature 0° to 50° C (32° to 122° F )
Storage Temperature -10° to 60° C   (14° to 140° F )
Dimension (L x W x H) 204 mm (8.03”)   x 90 mm (3.54”) x 32 mm (1.25”)
Weight 510 g (1.12   lb.)

Description

The BT608 is a touchscreen Battery & Electrical System analyzer that applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT608 can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT608’s VINscan function enables quick identification of the vehicle and battery specifications. Read/Clear codes on all available vehicles systems. Print or share customized reports via Wi-Fi or print test reports via the built-in thermal printer.

  • Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
  • Test 12-volt batteries: 100 – 3000 CCA
  • Test 12-volt cranking/charging systems
  • Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
  • Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
  • One-touch Battery registration
  • Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry
  • Illustration instruction guides for battery positioning and testing
  • Print test reports via built-in thermal printer
  • Read and erase codes of all available systems
