MaxiBAS BTAK

Product Details:

Item	Description
Connectivity	USB 2.0, Type C, Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage	5V DC
Working Current	< 150 mA at 12V DC
Internal Battery	N/A
CCA Range	100 to 2000A
Voltage Range	1.5 to 16V
Working Temperature	-10°to 50° C (14° to 122° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Dimension (L x W x H)	107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight	320 g (0.7 lb.)

Description

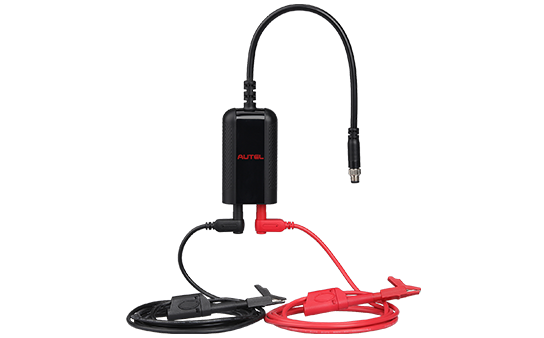

Autel’s Battery Tester Accessory Kit (BTAK) includes the DM100 Digital Multimeter 400A Current Clamp, Probes and Leads. Used with Autel’s MaxiBAS BT608 and BT609 Battery Analysis tools, the BTAK enables technicians to safely and easily troubleshoot vehicle electrical systems and components. Includes Autel’s 400 Amp Current Clamp with an effective measurement range of 20mA to 400A AC/DC.
