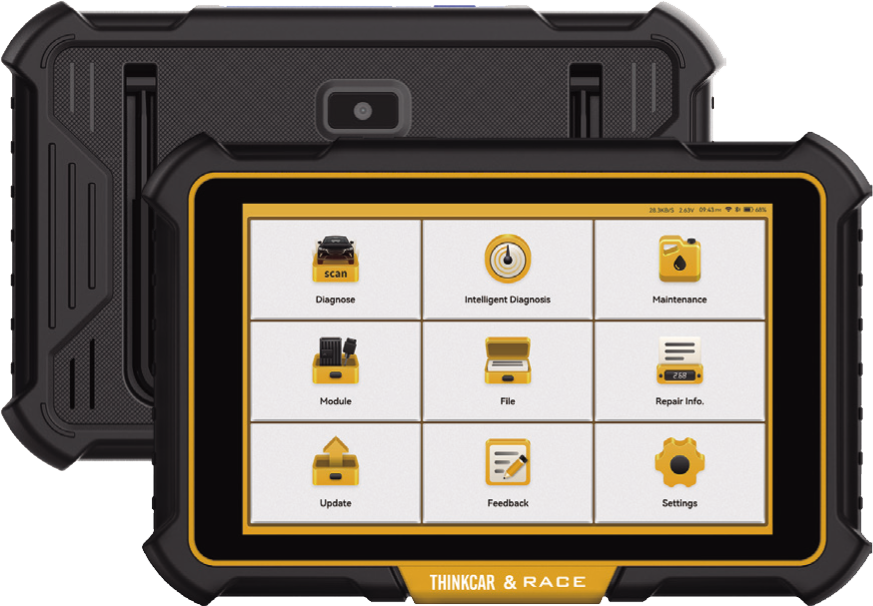

THINKCAR RACE ULTRA 8
8-INCH Full Function Diagnostic Tool
Professional, Powerful, Empowering Automotive Repair
THINKCAR RACE ULTRA 8
8-INCH Full Function Diagnostic Tool
THINKCAR RACE ULTRA8 is an 8-inch full-systems and full-function diagnostic tool for passenger vehicles. It supports SAE-J1850 PWM, SAE-J1850 VPW, ISO 9141, ISO-14230-2 ISO, ISO 14230-4 KWP, ISO 15765-4 CAN, CAN FD, DoIP and other protocols and Covers 120+ types of passenger vehicle software and supports external expansion modules such as printers, battery testers, thermal imagers, work lights and TPMS
Main Features
Advanced Diagnostic function, full system scan, and more.
Brand new design, user friendly interface, lighter and thinner.
Support 10 Languages, English, French, German, Spanish, Portuguese, Russian, Hindi, Tamil, Urdu, Telugu.
Expand Features with Thinkcar modules, Thinkcar TPMS programmer, Thinkcar video scope, Thinkcar scope box, Thinkcar printer-USB, ThinkEasy battery tester.
One Key to unlock FCA. Buy FCA accounts directly from THINKCAR website or offline distributors to unlock.
Accessories: Three-in-one charging adapter, TYPE C charging cable, diagnostic extension cable, DOIP kit.
One Key to unlock FCA. Buy FCA accounts directly from THINKCAR website or offline distributors to unlock.
35 Maintenance Functions
Hardware Specifications
Processor
Y21T
Operating System
Android 8.1
Storage
64G/4G
Battery
9450mAh / 3.8V
Bluetooth
BT5.0
Wi-Fi:
802.11 ac/a/b/g/n 2.4GHz&5GHz dual-band
Screen Size
8-inch
Resolution
1200 × 800
TPMS
optional
Warranty
24 Months (Standard)
Software Update
2-Year free update for passenger software
Certificates
FCC, CE, ROHS, IP65
